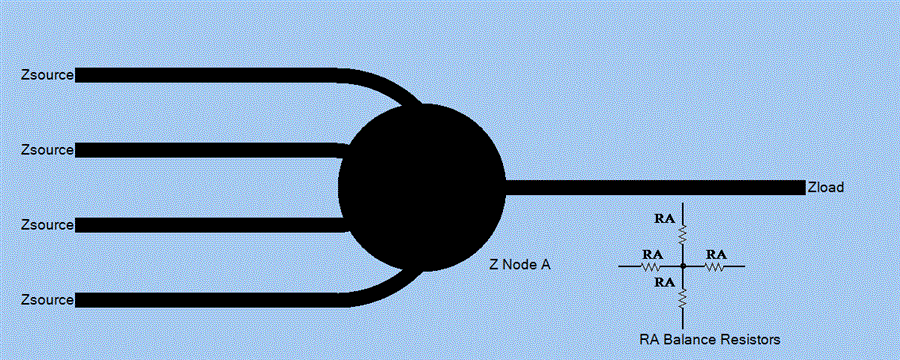

The simplest in-phase 4 way combiner. Using the classical 4:1 format to a single node and output.
Choose Catalog to move the design to a substrate or rod line. All results as is and no responsibility for usage.
All the source have the same value.
The load does not have to be the same as the source.
The input balance resistors, for a nominal value to try Source
