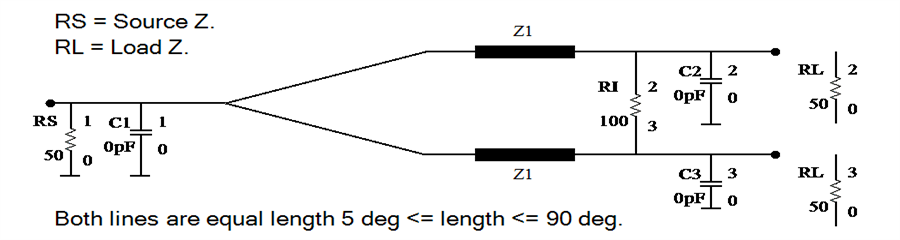

A very simple in-phase splitter based upon the Wilkinson design but with the shortend arms. Capacitive compensation for the reduction in line length.
Designs AS IS. No responsiblity taken for accurtacy of results.
Choose Catalog to move the design to a substrate. Nudge to change line values!
If the line lengths are 90 deg, all the Z's equal = 50 Ohms and sum point 100 Ohms then the design will reduce to the Classical Wilkinson with 50 Ohm input line and 70.7 Ohm arms.
All line lengths are the same degrees <= 90.
Both loads are the same with equal power split.
