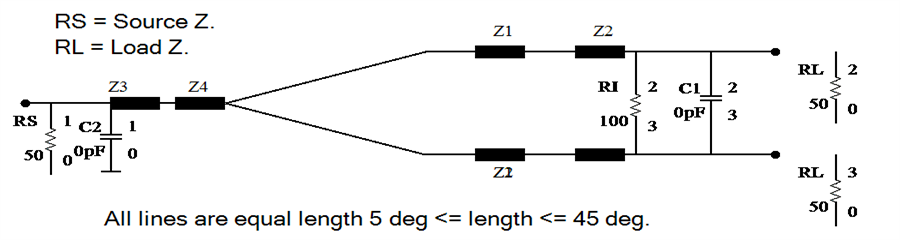

A very simple in-phase splitter based upon the Wilkinson design but with the arms split into two equal parts, reduced length and different Z's..
Designs AS IS. No responsiblity taken for accuracy of results.
Choose Catalog to move the design to a substrate. Nudge to change line values!
If the line lengths are 45 deg, all the Z's equal = 50 Ohms and sum point 100 Ohms then the design will reduce to the Classical Wilkinson with 50 Ohm input line and 70.7 Ohm arms.
All line lengths are the same degrees <= 45.
Both loads are the same with equal power split.
To eliminate the entry lines: Choose the sum point Z = 2 x Zsource.
